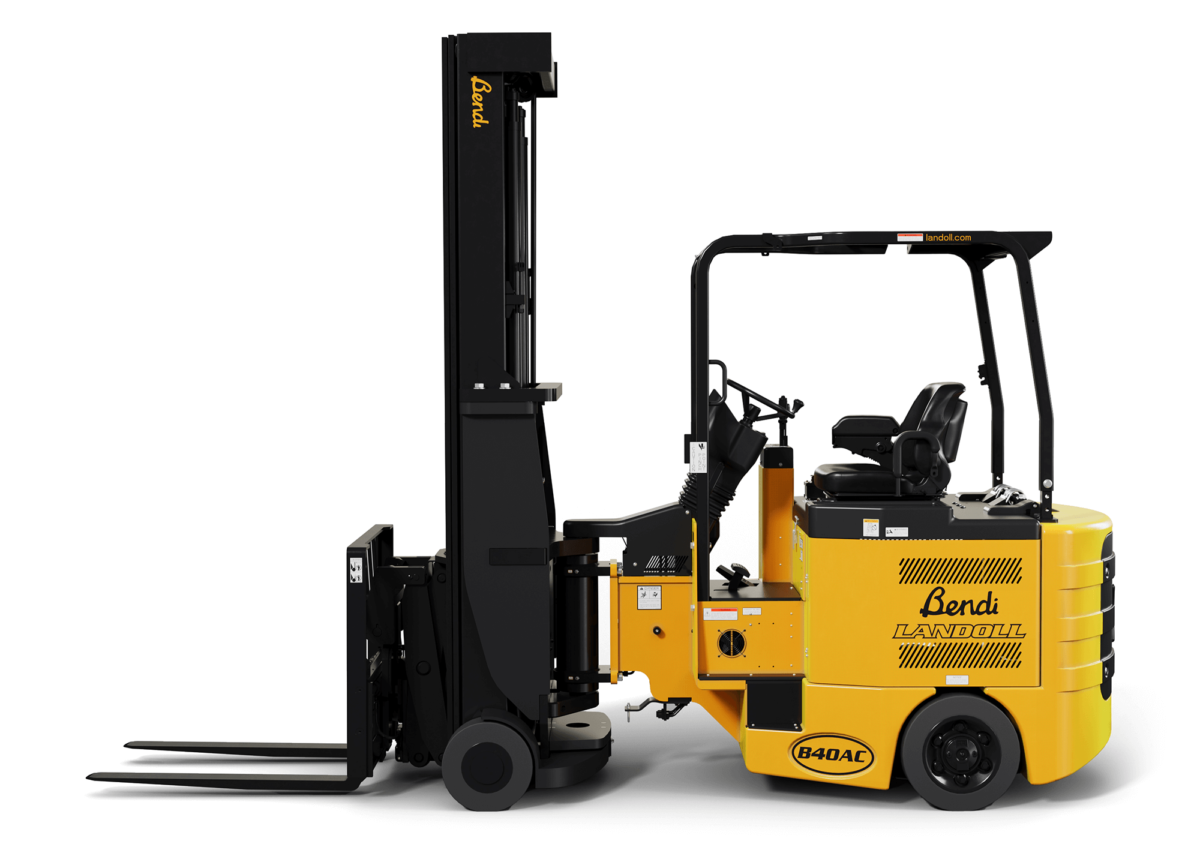

Bendi B40AC-DR/B50AC-DR Deep Reach Narrow Aisle Forklift

Overview

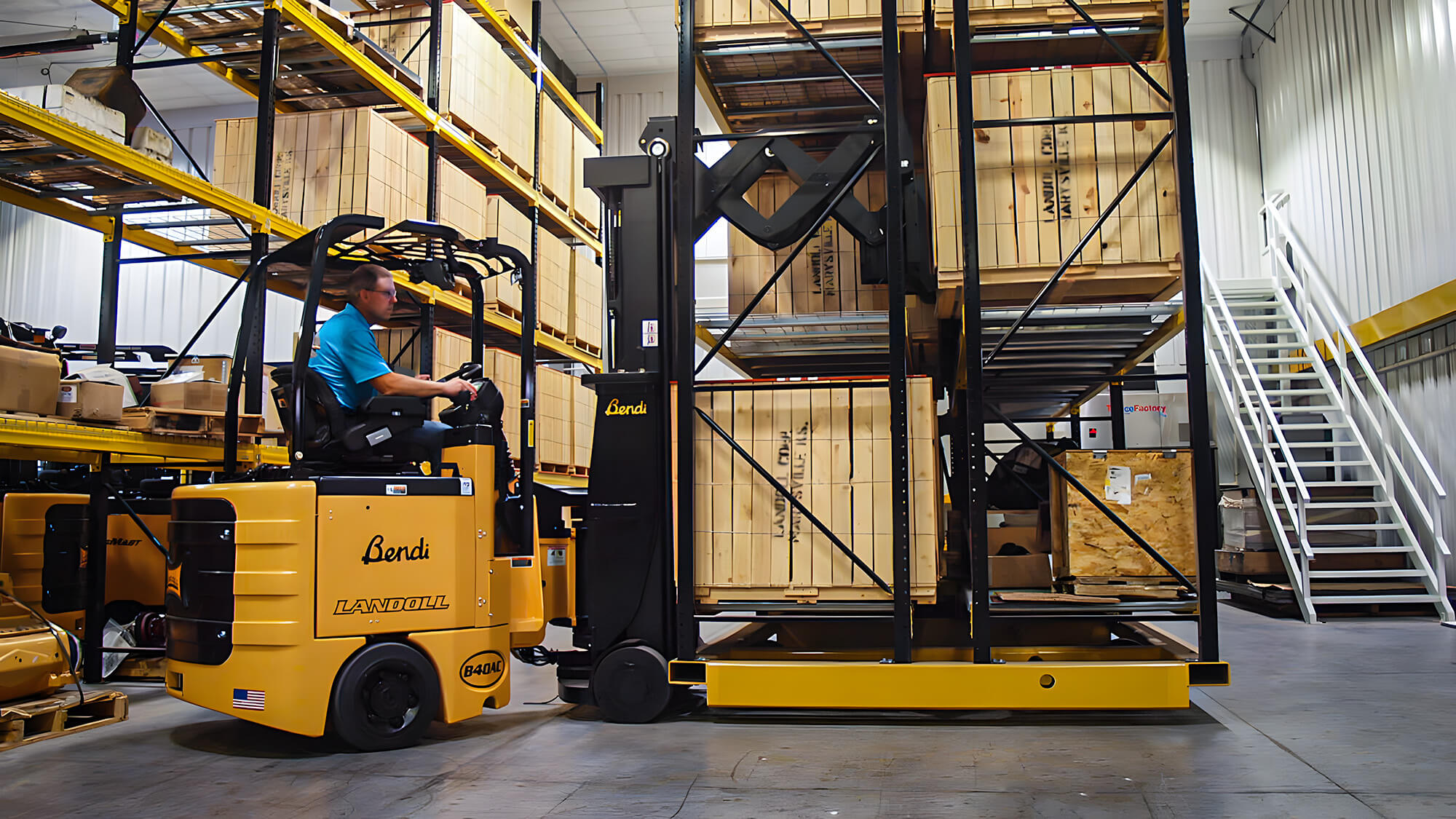

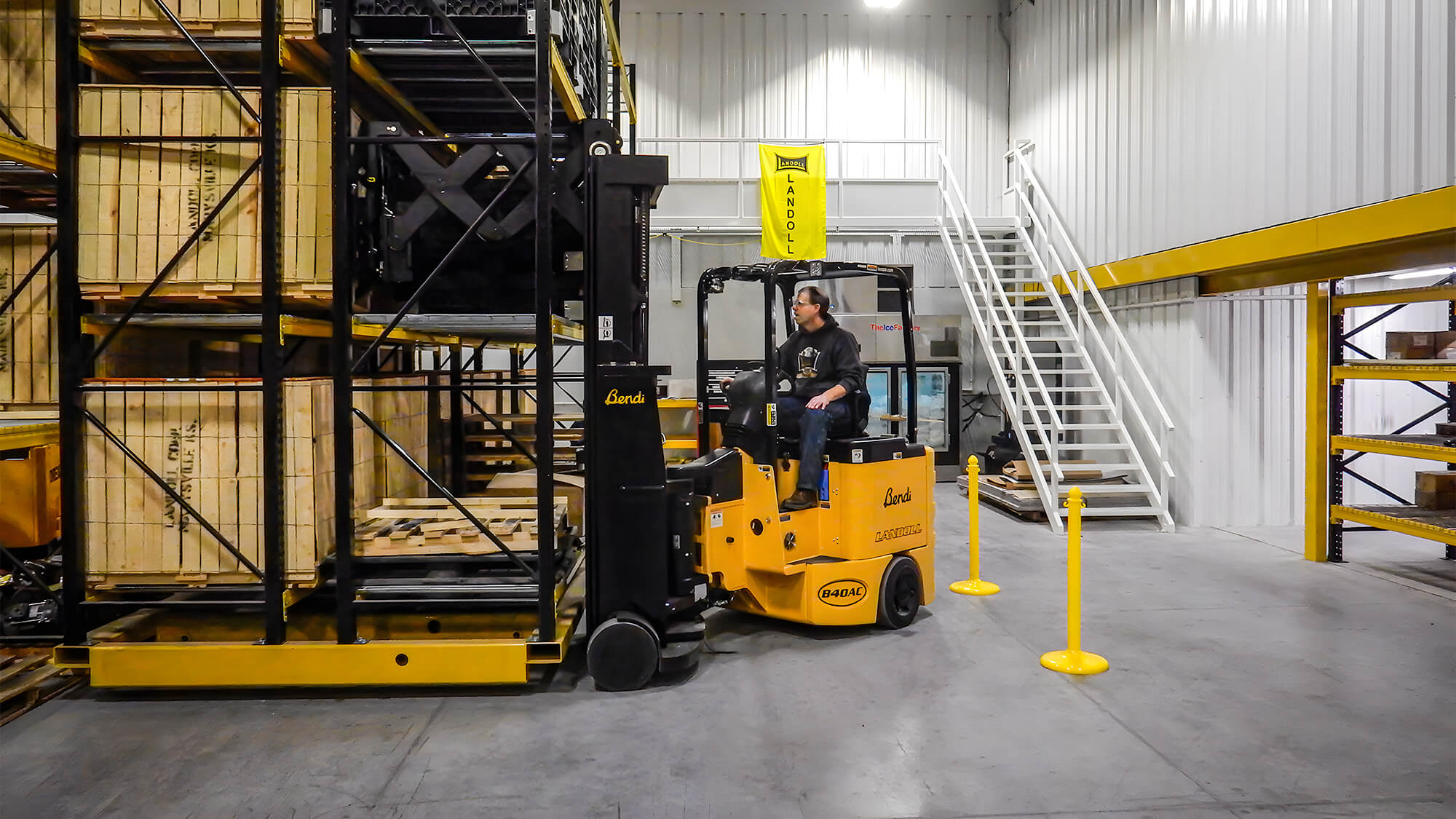

The Bendi B40AC-DR and B50AC-DR forklifts can stack loads two deep in aisles as narrow as 96” (2.43 M)*, have a starting capacity of 2,500 lbs (1,136 kg) at 24” (600 mm) load center and lift heights available to 35′ 5″ (10.80 M). The reach from face to mast is 52” (1,321 mm) and the integral pantograph reach stroke is 41” (1,041 mm) They have a 33” (838 mm) wide tilting and side shifting fork carriage.

They are a 4-wheel articulating forklift with dual independently driven rear-drive tires and soft-poly front load tires. The Bendi B40AC-DR and B50AC-DR can work inside and outside on paved surfaces and have a floating front axle allowing the truck to ride smoothly over uneven floors. They can do the same jobs as reach and counterbalanced trucks but in much narrower aisles.
