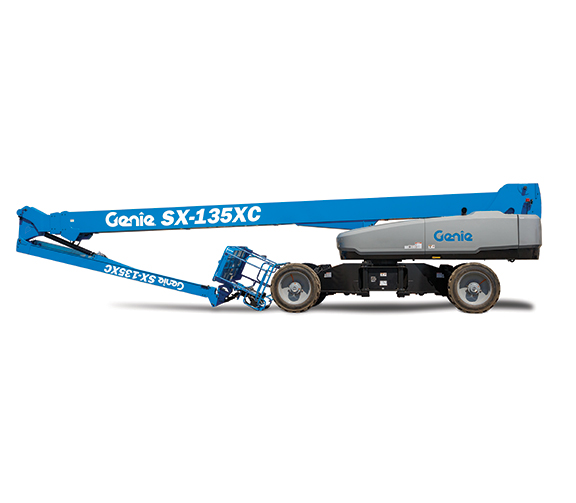

Genie SX-135 XC Telescopic Boom Lift
Genie SX-135 XC Telescopic Boom Lift
Machine Type
Aerial Lifts
Secondary Machine Type
Aerial Work Platforms
Manufacturer
Genie
Models
SX-135 XC
Capactiy
1000 lbs.
Max Working Height
141 ft.
Overview
The Genie® SX-135 XC™ telescopic boom delivers industry-leading outreach and capacity through the full working envelope for incredible operational versatility and accessibility. It boasts 660 lb/1,000 lb (300/454 kg)** dual platform capacity with a smooth range of motion envelope to lift heavy loads in the most challenging jobsite applications.
Downloads / Links
SpecsIndustries
- Construction & General Contracting
- Utilities & Telecommunications
- Industrial & Manufacturing
- Warehousing & Logistics
- Facility Maintenance & Property Management
- Entertainment, Events & Venues
- Landscaping, Tree Care & Arborists
- Aviation & Aerospace
Models and Specifications
| Specification | Value |
|---|---|
| Max Working Height | 141 ft | 43.15 m |
| Max Horizontal Reach | 90 ft | 27.43 m |
| Below Ground Reach | 19 ft 8 in | 6.00 m |
| Platform Capacity | 660 lb Unrestricted, 1,000 lb Restricted | 300 kg Unrestricted, 454 kg Restricted |
| Machine Width and Length | Width: 8 ft 2 in – 12 ft 11 in | Length: 64 ft 10 in | Width: 2.49 m – 3.94 m | Length: 19.76 m |
