Bendi B40AC-DR / B50AC-DR Forklift
Bendi B40AC-DR / B50AC-DR Forklift

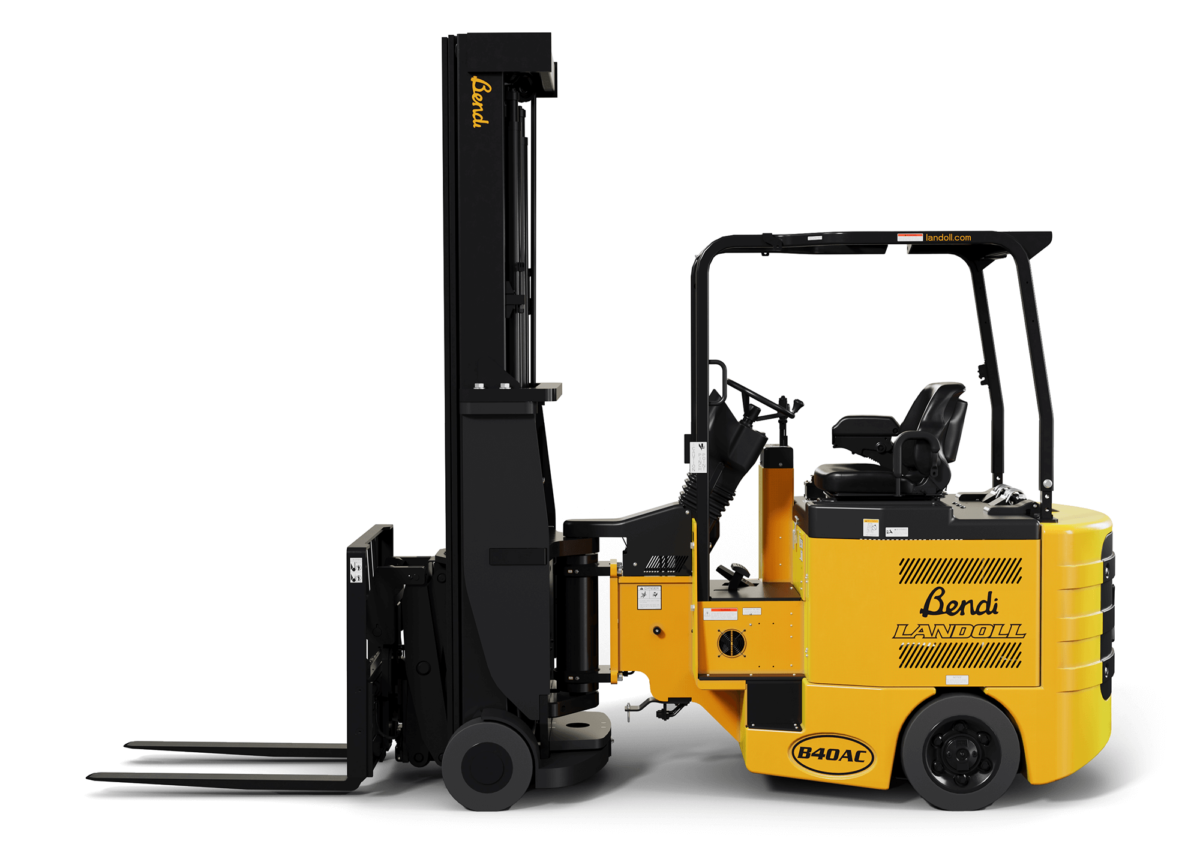

Bendi B40AC-DR / B50AC-DR Forklift Information
The Bendi B40AC-DR and B50AC-DR forklifts can stack loads two deep in aisles as narrow as 96” (2.43 M)*, have a starting capacity of 2,500 lbs (1,136 kg) at 24” (600 mm) load center and lift heights available to 35′ 5″ (10.80 M). The reach from face to mast is 52” (1,321 mm) and the integral pantograph reach stroke is 41” (1,041 mm) They have a 33” (838 mm) wide tilting and side shifting fork carriage.
They are a 4-wheel articulating forklift with dual independently driven rear-drive tires and soft-poly front load tires. The Bendi B40AC-DR and B50AC-DR can work inside and outside on paved surfaces and have a floating front axle allowing the truck to ride smoothly over uneven floors. They can do the same jobs as reach and counterbalanced trucks but in much narrower aisles.
- Four Wheel Design, Dual Rear Wheel Drive
- 8” (200 mm) Stroke Integral Side Shifter

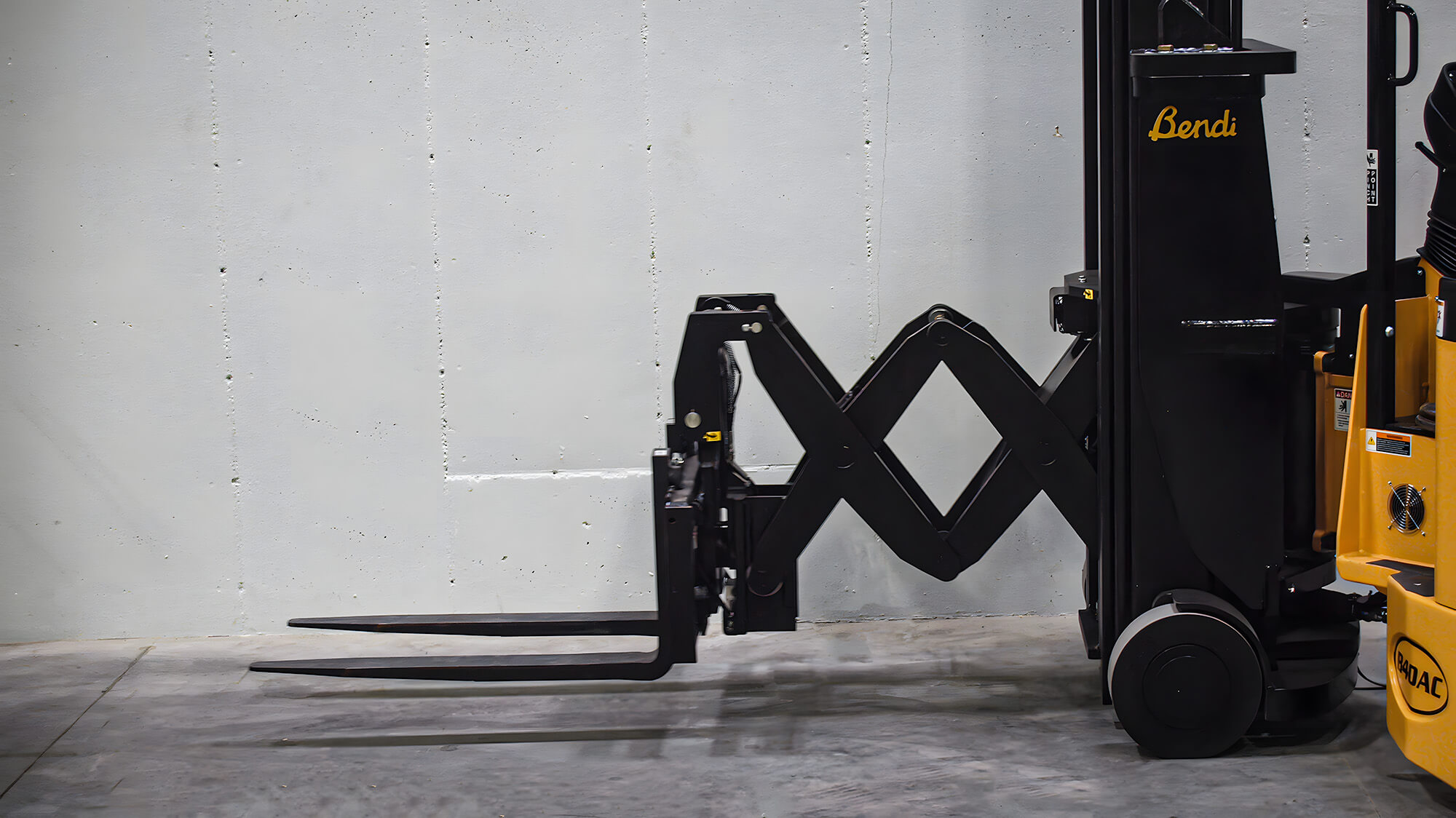

- 41” (1041 mm) Stroke Integral Pantograph Reach
- 52” (1321 mm) Reach From Face of Mast
- 33” (838 mm) Wide Tilting and Side Shifting Fork Carriage
- Adjustable Seat and Steering Wheel
- Rotation via DuraSteerTM Actuator, with 5-Year Warranty on Articulation
- Dual Curtis AC Traction Motor Controllers
- Curtis AC Hydraulic Motor Controller
- Battery Discharge Indicator with Slow Alert
- Hydraulic Disk Brakes
- “Floating” Articulated Front Axle
- One Parts and Operator’s Manual Included
- Curtis Engage Dash Display
- Hand Actuated Parking Brake
- 36” (914mm) High Backrest
- High Visibility Mast
- 170˚ Rear View Mirror
- Safety Seat Switch and Seat Belt
- Fixed Mast with Carriage Tilt of 1º Fwd / 2º Rwd
- 48 Volt Electrical System
- Three Section Hydraulic Control Valve
- Smooth Rubber Drive Tires
- Soft Polyurethane Load Wheel Tires
- 40” Tapered Tip Forks – Rear Tow Hitch Pin
- Meets ANSI B56.1
List of Specifications
List of Features
- B55AC 5500 lb 2495kg Capacity at 24 600mm Load Center
- 48 Volt Electrical System
- AC Traction and Hydraulic Motors Ensure Minimal Maintenance and High Efficiency
- Creep Speed Mode Adds Enhanced Control when Handling Loads at High Elevations or While Training Operators
- DuraSteerTM Front Wheel Hydraulic Steering Provides Smooth Reliable Long Lasting Steering Control
- Ergonomic Design for Exceptional Operator Comfort and Safety
- Four Wheel Design Dual Rear Wheel Drive Provides Excellent Power Braking and Traction
- High Efficiency Curtis AC Controllers Provide Trouble Free Operation
- High Visibility Mast Allows Optimum Safety and Control
- Independently Controlled Rear Wheels Allow Independent Speed Control of Each Drive Tire Based on Steering Angle
- Integral Wide Stroke Sideshifter Makes Placing and Picking Loads Effortless
- Interactive LCD Status Monitor BDI with Lift Interrupt Hour Meter with Service Monitor Diagnostic Code Display Input Device Calibration
- Optional Cold Storage Conditioned to 22 F 30 C
- Standard Features
