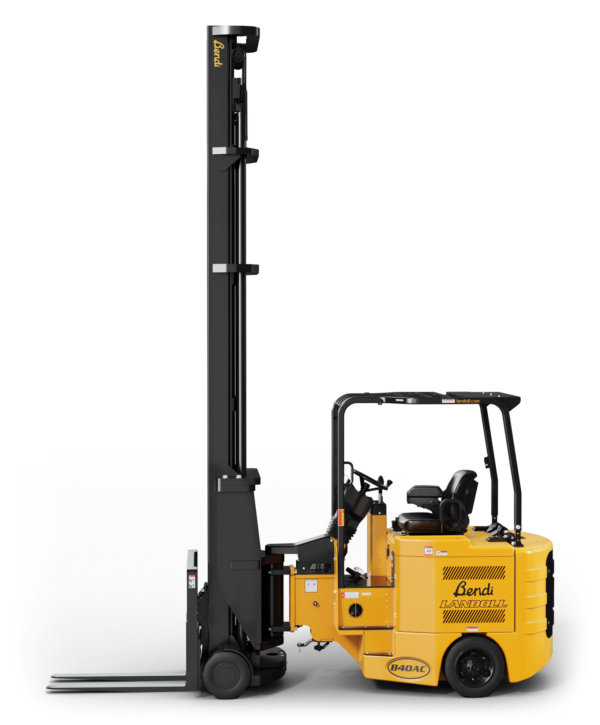

Bendi B40AC-HL / B50AC-HL Forklift
Bendi B40AC-HL / B50AC-HL Forklift
Bendi B40AC-HL / B50AC-HL Forklift Information
The Bendi B40AC-HL and B50AC-HL forklifts work in aisles as narrow as 78″ (1.98M)*, have a starting capacity of 4,400 lbs (1996 kg) at 24″ (600mm) load center and lift heights available to 41′ (12.50M).
They are a 4-wheel articulating forklift with dual independently driven rear-drive tires and soft-poly front load tires. The Bendi B40AC-HL and B50AC-HL can work inside and outside on paved surfaces and have a floating front axle allowing the trucks to ride smoothly over uneven floors. They can do the same jobs as reach and counterbalanced trucks but in much narrower aisles.
- 4,400 lb. (1,996kg) and 5,000 lb. (2,268kg) Capacity at 24” (600mm) Load Center
- Lift Heights to 492” (12.5M)
- Four-Wheel Design, Dual Rear Wheel Drive
- High Visibility 3-Stage Mast
- Integral 11.2” (285mm) Stroke Side Shifter and 36” (914mm) High Load Backrest
- Adjustable Seat and Steering Wheel
- Dual Curtis AC Traction Motor Controllers
- Curtis AC Hydraulic Motor Controller
- Battery Discharge Indicator with Lift Interrupt
- Electronic Regenerative and Hydraulic Disc Braking
- “Floating” Articulated Front Axle
- 180º Front-End DuraSteer™ Articulation / Steering Assembly with 5-Year Warranty
- Safety Seat Switch, Seat Belt and Rear View Mirror
- Curtis Engage Dash Display
- Hand Actuated Parking Brake
- Non-Tilting Rigid Mounted Mast
- Carriage Tilt 0º Forward / 3º Backward
- Smooth Rubber Drive Tires
- Soft Polyurethane Load Wheel Tires
- 40” (1,000mm) Tapered Tip Forks – Rear Tow Hitch Pin
- Three Section Hydraulic Control Valve
- Meets ANSI B56.1
List of Specifications
List of Features
- B55AC 5500 lb 2495kg Capacity at 24 600mm Load Center
- 48 Volt Electrical System
- AC Traction and Hydraulic Motors Ensure Minimal Maintenance and High Efficiency
- Creep Speed Mode Adds Enhanced Control when Handling Loads at High Elevations or While Training Operators
- DuraSteerTM Front Wheel Hydraulic Steering Provides Smooth Reliable Long Lasting Steering Control
- Ergonomic Design for Exceptional Operator Comfort and Safety
- Four Wheel Design Dual Rear Wheel Drive Provides Excellent Power Braking and Traction
- High Efficiency Curtis AC Controllers Provide Trouble Free Operation
- High Visibility Mast Allows Optimum Safety and Control
- Independently Controlled Rear Wheels Allow Independent Speed Control of Each Drive Tire Based on Steering Angle
- Integral Wide Stroke Sideshifter Makes Placing and Picking Loads Effortless
- Interactive LCD Status Monitor BDI with Lift Interrupt Hour Meter with Service Monitor Diagnostic Code Display Input Device Calibration
- Optional Cold Storage Conditioned to 22 F 30 C
- Standard Features
* Price, if shown, is Manufacturer's Suggested Retail Price (MSRP) and does not include government fees, taxes, dealer freight/preparation, dealer document preparation charges or any finance charges (if applicable). MSRP and/or final actual sales price will vary depending on options or accessories selected.
REQUEST A QUOTE
| Manufacturer | Bendi, Landoll |
| Category | Forklifts and Lift Trucks |
| Subcategory | High Lift, Very Narrow Aisle |
| Condition | New, Showroom |
| Hours | 0 |
