Drexel SL60 / SL80 Forklift
Drexel SL60 / SL80 Forklift
Drexel SL60 / SL80 Forklift Information

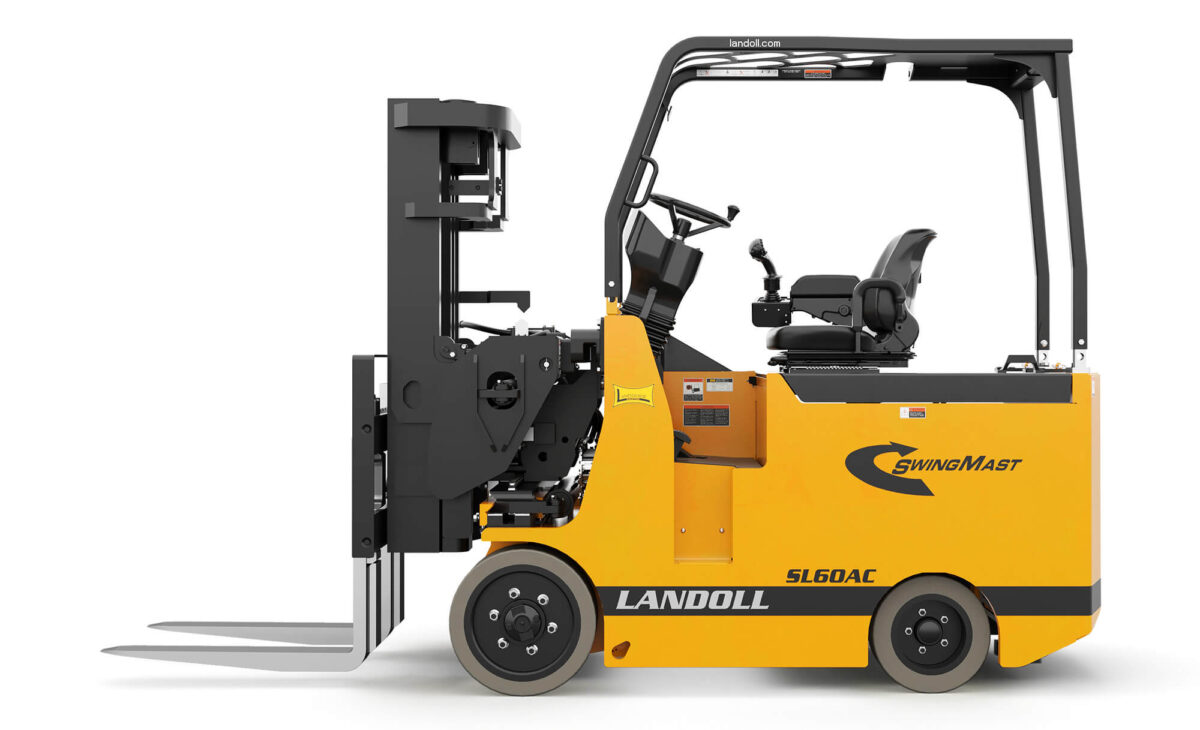

The Drexel SL60AC and SL80AC forklifts are high-capacity SwingMast® models that work in aisles as narrow as 66″ (1.67M)*, have a starting capacity of 6,000 lbs (2722kg) or 8,000 lbs (3629kg) at 24″ (600mm) load center and lift heights available to 289” (7.34M).
They are 4-Wheel SwingMast® VNA and Side-Loading forklifts with independently driven front wheels and dual rear steer tires. The front mast rotates 90°, has side shift of 30” (762mm), allows easy stacking in Very Narrow Aisles. The Drexel SL60AC and SL80AC can work inside and outside on paved surfaces and can perform the jobs of high-capacity front loading and side-loading forklifts including working in bulk storage, cantilever rack, push-back rack, double deep and climbing steep ramps. The SL range does the same jobs of reach and counterbalanced trucks in aisles over 40% smaller. The ability to store and transport heavy long loads as a side loader increases versatility and maximizes utilization.
- Four-Wheel Configuration – 6,000 lb. (2,722kg) and 8,000 lb. (3,629kg) Capacity
- 72 Volt Electrical System
- Curtis SEPEX Dual Traction Motor Controllers
- Curtis Series Hydraulic Motor Controller
- Meets ANSI B56.1
- Battery Discharge Indicator with Lift Interrupt
- Hydrostatic Power Steering
- 30” (762mm) of Shift-Includes 3” (76mm) of Reach
- 40” (1,016mm) Long Shank Forks with Standard Taper
- Poly Drive and Steer Tires
- 42” (1066mm) High Load Backrest
- Type E Construction
- Anderson SBX350 Green Connector
- Seat Belt (Retractable)
- Horizontal Fork Indicator, Overhead Guard
- Key Switch, Hand Parking Brake and Hour Meter
List of Specifications
List of Features
- B55AC 5500 lb 2495kg Capacity at 24 600mm Load Center
- 48 Volt Electrical System
- AC Traction and Hydraulic Motors Ensure Minimal Maintenance and High Efficiency
- Creep Speed Mode Adds Enhanced Control when Handling Loads at High Elevations or While Training Operators
- DuraSteerTM Front Wheel Hydraulic Steering Provides Smooth Reliable Long Lasting Steering Control
- Ergonomic Design for Exceptional Operator Comfort and Safety
- Four Wheel Design Dual Rear Wheel Drive Provides Excellent Power Braking and Traction
- High Efficiency Curtis AC Controllers Provide Trouble Free Operation
- High Visibility Mast Allows Optimum Safety and Control
- Independently Controlled Rear Wheels Allow Independent Speed Control of Each Drive Tire Based on Steering Angle
- Integral Wide Stroke Sideshifter Makes Placing and Picking Loads Effortless
- Interactive LCD Status Monitor BDI with Lift Interrupt Hour Meter with Service Monitor Diagnostic Code Display Input Device Calibration
- Optional Cold Storage Conditioned to 22 F 30 C
- Standard Features
* Price, if shown, is Manufacturer's Suggested Retail Price (MSRP) and does not include government fees, taxes, dealer freight/preparation, dealer document preparation charges or any finance charges (if applicable). MSRP and/or final actual sales price will vary depending on options or accessories selected.
REQUEST A QUOTE
| Manufacturer | Drexel, Landoll |
| Category | Forklifts and Lift Trucks |
| Subcategory | Narrow Aisle, Swing Mast Lift Trucks |
| Condition | New, Showroom |
| Hours | 0 |
