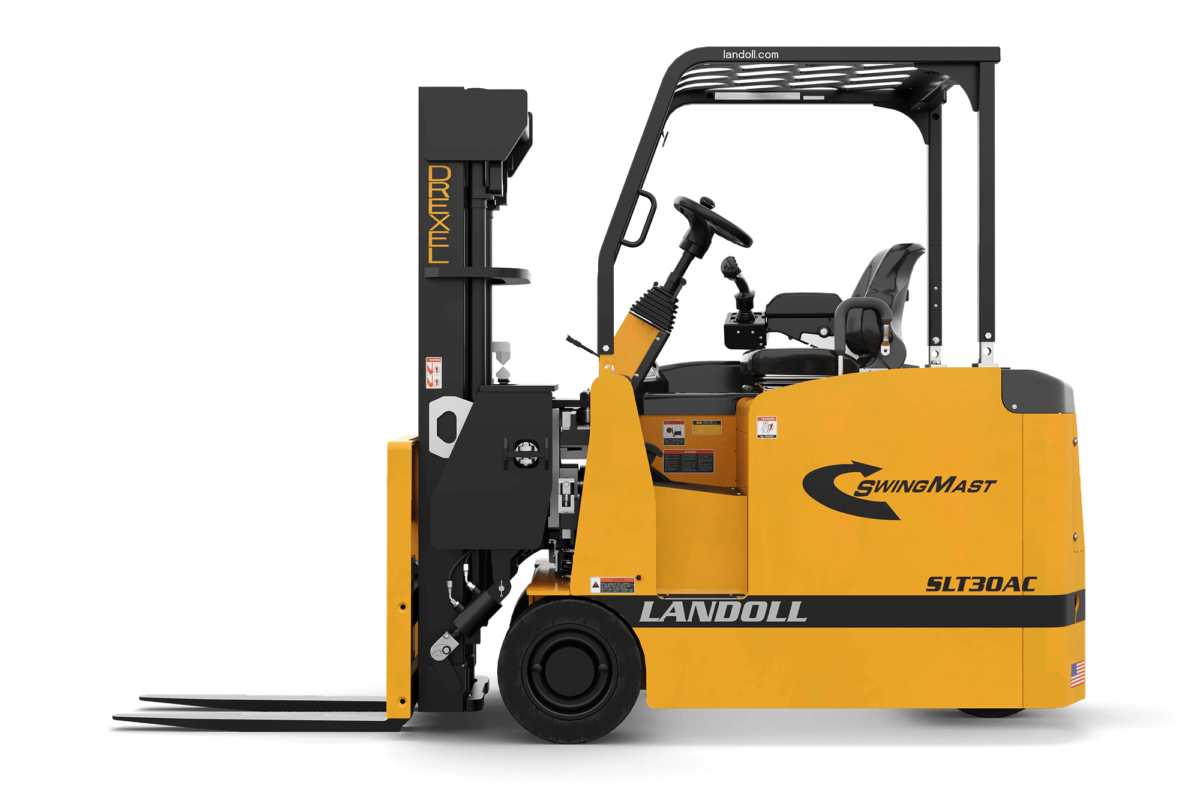

Drexel SLT30AC / SLT35AC Forklift
Drexel SLT30AC / SLT35AC Forklift
Drexel SLT30AC / SLT35AC Forklift Information
The Drexel SLT30AC and SLT35AC forklifts work in aisles as narrow as 56″ (1.42M)*, have a starting capacity of 3,000 lbs (1361kg) or 3,500 lbs (1588kg) at 24″ (600mm) load center and lift heights available to 26′ (7.92M).
They are 3-wheel front/side loading VNA forklifts with a single smooth rubber rear-drive/steer tire and solid poly-front load tires. The front mast rotates 90° and has side shift of 20” (508mm), allowing stacking easily in Very Narrow Aisles. The Drexel SLT30AC and SLT35AC can work inside and outside on paved surfaces, and perform the jobs of a normal front-loading forklift (including loading and unloading highway trucks and containers, working in bulk storage, drive-in rack, push back rack, double deep and climbing steep ramps). The SLT range does the same jobs of reach and counterbalanced trucks in aisles over 50% smaller. The rear steering and drive allow turning in short-cross aisles, further increasing the storage density when compared to counterbalanced trucks.
- Three-Wheel Configuration
- Rear-Wheel Drive and Steering
- High Visibility Mast (3 or 4-Stage)
- 90° Pivoting and Shifting Mast
- 48 Volt Electrical System
- AC Traction Control with Self-Diagnostics, Hour Meter and Battery Discharge Indicator with Lift Interrupt
- Adjustable Driver’s Seat (15° Swivel Seat)
- Safety Seat Switch – Cuts Power
- Single Joystick Control Lever
- Parking Brake, Electric, Mechanically Applied, Electrically Released
- Hydraulic Service Front Wheel Brakes
- AC Hydraulic Pump Control
- Type “E” Construction
- Electronic Power Steering
- Automatic Return –to– Neutral
- Seat Belts
- SB 350 Blue Battery Connector
- Key Switch
- Covered Battery Compartment
- Battery Compartment Rollers
- Cushion Rubber Drive Tire (1)
- Polyurethane Load Tires (2)
- Horizontal Fork Indicator
- Overhead Guard
- Load Backrest
- Horn
List of Specifications
List of Features
- B55AC 5500 lb 2495kg Capacity at 24 600mm Load Center
- 48 Volt Electrical System
- AC Traction and Hydraulic Motors Ensure Minimal Maintenance and High Efficiency
- Creep Speed Mode Adds Enhanced Control when Handling Loads at High Elevations or While Training Operators
- DuraSteerTM Front Wheel Hydraulic Steering Provides Smooth Reliable Long Lasting Steering Control
- Ergonomic Design for Exceptional Operator Comfort and Safety
- Four Wheel Design Dual Rear Wheel Drive Provides Excellent Power Braking and Traction
- High Efficiency Curtis AC Controllers Provide Trouble Free Operation
- High Visibility Mast Allows Optimum Safety and Control
- Independently Controlled Rear Wheels Allow Independent Speed Control of Each Drive Tire Based on Steering Angle
- Integral Wide Stroke Sideshifter Makes Placing and Picking Loads Effortless
- Interactive LCD Status Monitor BDI with Lift Interrupt Hour Meter with Service Monitor Diagnostic Code Display Input Device Calibration
- Optional Cold Storage Conditioned to 22 F 30 C
- Standard Features
* Price, if shown, is Manufacturer's Suggested Retail Price (MSRP) and does not include government fees, taxes, dealer freight/preparation, dealer document preparation charges or any finance charges (if applicable). MSRP and/or final actual sales price will vary depending on options or accessories selected.
REQUEST A QUOTE
| Manufacturer | Drexel, Landoll |
| Category | Forklifts and Lift Trucks |
| Subcategory | Narrow Aisle, Swing Mast Lift Trucks |
| Condition | New, Showroom |
| Hours | 0 |
