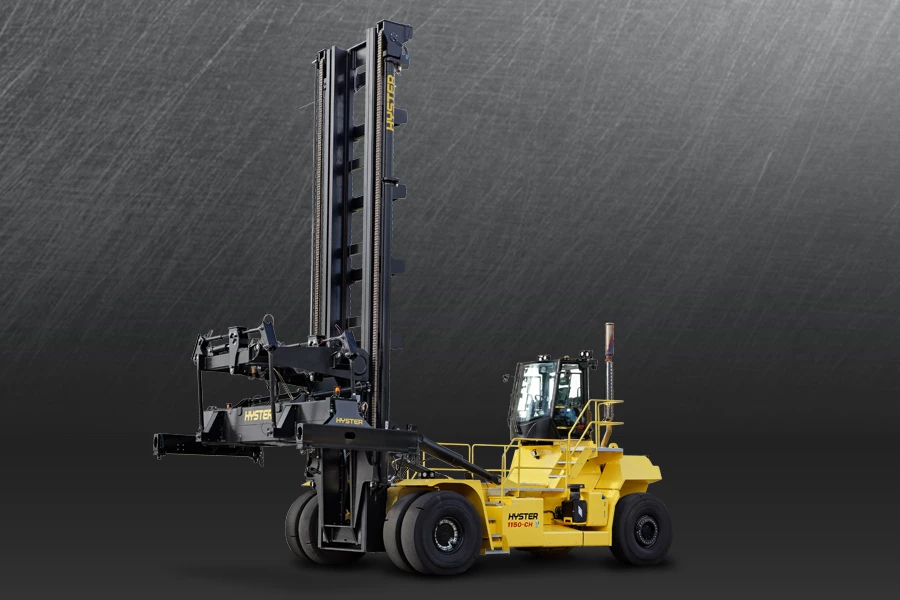

Hyster H1050-1150XD-CH Heavy Duty Top Loader Container Handler

Hyster H1050-1150XD-CH Heavy Duty Top Loader Container Handler Information

Models

H1050-1150XD-CH

Capacity

82200-90390lbs

Hyster laden container handlers deliver unmatched productivity in tough applications.

The ergonomically designed high visibility cab puts greater productivity within easy reach. Equipped with an armored glass top window, curved front and rear windows and steel doors with tempered glass, the operator cab provides excellent all-around visibility. Inside the cab there is more space with the largest entry area in the industry, more control with a full-color screen displaying performance data at the operator’s fingertips and more comfort with an exclusive lateral sliding seat, adjustable steering column and foot pedal, plus ergonomic controls.

Model	Load Capacity	Load Center	Lift Height	Turning Radius	Overall Width	Weight	Engine Type	Transmission
H1150HD-CH6	82200lbs	69in	702	316	193	177263	Cummins X12 Diesel	Dana S.O.H TE30
H1050XD-CH5	82670lbs	69in	588	316	165	164383	Cummins X12 Diesel	Dana S.O.H TE30
H1150HD-CH5	90390lbs	69in	588	316	165	170664	Cummins X12 Diesel	Dana S.O.H TE30
H1050XD-CH4	90390lbs	69in	474	316	165	158914	Cummins X12 Diesel	Dana S.O.H TE30
H1150HD-CH4	90390lbs	69in	474	316	165	165415	Cummins X12 Diesel	Dana S.O.H TE30
